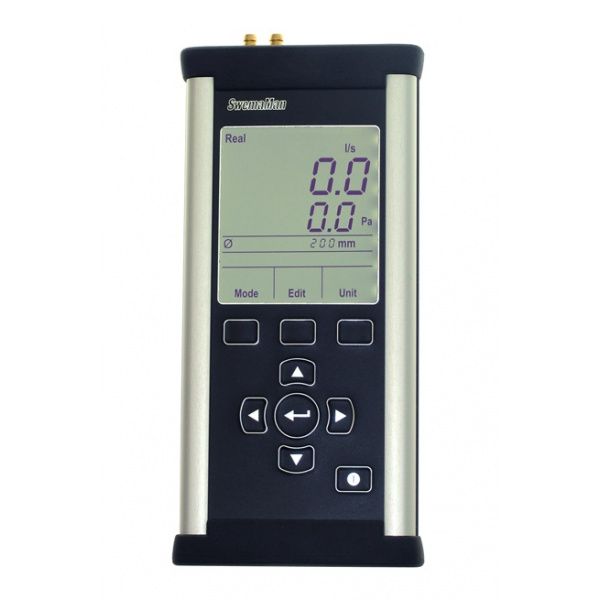

SwemaMan 8 Micromanometer
SwemaMan 8 is a micromanometer designed for precise testing, adjustment and balancing (TAB) as well as for industrial and research applications.
- The device has a built-in differential pressure sensor and a zero setting valve for automatic zero pressure testing.
- It measures the air flow according to EN 16211 and 12599.
- The air speed is measured with a Pitot tube.
- Airflow is indicated by air velocities over an area or measured at a valve with a K-factor.
- The included barometer and thermocouple automatically compensate for speed and flow for air density.
- SwemaMan 8 displays minimum, maximum and average values. The measurements can be saved and transferred to a PC.
SPECIFICATION SwemaMan 8
| Measuring range | |
|---|---|
| Differential pressure | -100...1500 Pa, -0.4...6 inH₂O |
| resolution | 0.1 Pa, 0.1 Pa is 0.0...999.9 Pa, 1 Pa is 1000...1500 Pa |
| Air speed | approx. 2...49 m/s, 390...9600 fpm (calculated) |
| Barometer | 600...1200 hPa, 18...35 inHg (integrated) |
| Temperature | 0... 50 °C, 32...122 °F (standard curve, thermocouple connector type K) |
| Measurement uncertainty at 23°C ±5°C | |
|---|---|
| Differential pressure | ±0.3% reading, min. ±0.4 Pa |
| Barometer | ±2,5 hPa |
| Input temperature thermocouple type K | ±1°C, see sensor |
