Gaussmeter probe

for series 5100 and 5200


Description STD18-0404

high basic accuracy


Transverse probe


Features

  • commonly used standard probe
  • flexible
  • optional: Calibration according to NIST, DAkkS, factory standard
  • usable with Gaussmeter GM5270, GM5280, GM5170 and GM5180

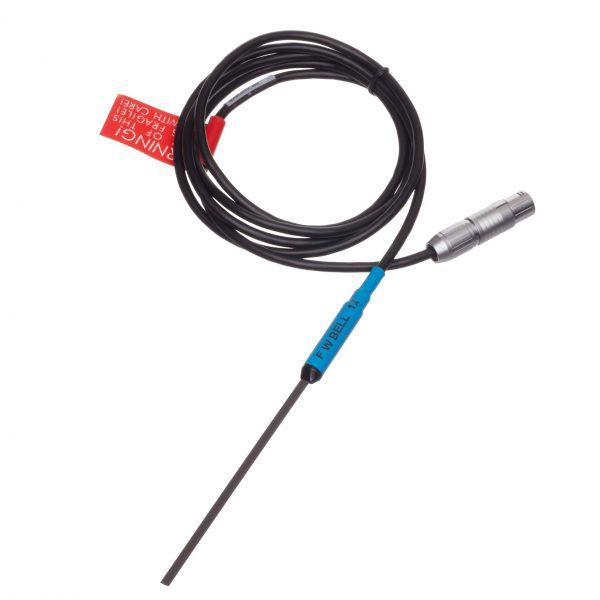

Gaussmeter Sonde STD18-0404

Transverse probe for Gaussmeter GM5270, GM5280, GM5170 and GM5180

PARAMETER Value
Length sensor 4"
Thickness of sensors
Cable length approximately 1.5m (5´)
Material Messfühler Phenolic
Corrected linearity 0.75% / 1g
sensitivity
operating temperatur 0°C to 75°C
Frequency response DC bis 700 Hz
